INCRA TS-LS Table Saw Fence - 52"/1320mm Capacity
INCRA TS-LS Table Saw Fence - 52"/1320mm Capacity
* Table saw not included *

Alternative Views:
The 52"/1320mm -capacity TS-LS is based on 92” aluminum main rails and a 32”-travel LS Positioner. The standard TS-LS (LS52-TS) covers saws measuring 28" or smaller front-to-rear (measured along the miter slot). The “XL” version fits most of the newer 10” & 12” cabinet saws with deeper tops measuring 33.5” or less using a longer fence and base support panel. Choose from 1/32" imperial or 1mm metric positioning mechanics below.

Made in U.S.A.
List Price: $907.95
Our Price: $599.95
You save $308.00!


Estimated availability: Estimated 1 – 2 week production lead time due to high demand
Product Code: LS52-TS

Choose metric or imperial

options*:
choose a size

size*:

TS-LS options*:


Description Extended Information



INCRA TS-LS Rip Fence System
52"/1320mm Capacity

>> Click here to watch the LS Positioner Intro Video
>> Click here to watch the TS-LS Demo - Part 1 of 3
>> Click here to watch the TS-LS Demo - Part 2 of 3
>> Click here to watch the TS-LS Demo - Part 3 of 3
>> Click here to watch the TS-LS Table Saw Fence Video (from New Woodworker)


For almost 30 years, INCRA Saw Fences have been the Gold Standard for Accuracy, Repeatability, and Efficiency.

Whether your table saw cost $500 or $4,500, your saw only turns the blade, and it's your rip fence that holds the key to accurate work.

The big advantage that an INCRA TS-LS fence system has over your current rip fence is simple: In addition to locking into perfect alignment, INCRA fences measure their distance from the blade mechanically, so your accuracy doesn’t depend on how much skill you have, how good your shop's lighting is, or how tired your eyes are.

Advanced design:

  • Simple, patented lead screw-based mechanics instantly position the fence in 1/32” steps +/-0.002” (1mm +/- 0.05mm for metric versions) with perfect repeatability…you can’t miss!
  • Integrated micro adjust knob allows moving between 1/32” steps with 0.001” resolution
  • Fence locks at 3 points for exceptional stiffness
  • Consistent alignment relative to the blade
  • Fence T-slots accommodate hold downs and wooden sub fences
  • Adjustable brackets for straightforward installation on a huge variety of table saws
  • Two preset locations for the LS32 positioner provide 52” right-side ripping capacity with 14” of left-side capacity
  • Expandable in the future with router tables & accessories

Spend less time tapping and measuring!

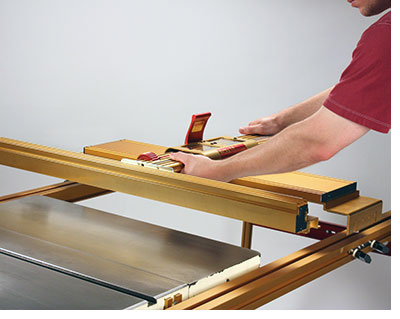

It’s fast! Each time you pull the LS32 positioner’s red locking lever, the lead screw mechanism instantly snaps the fence to the dead center of the nearest 1/32" or 1 mm increment with an accuracy of +/- 0.002"…in non-technical terms, that’s accurate enough to split a sharp pencil line into a dozen equal parts. There’s no guesswork, period.

The LS positioner’s mechanics let you quickly repeat any fence position hours or days later, giving you the flexibility to use your saw in ways you couldn’t before – make repetitive cuts with ease, turn out complex project parts that require several different fence settings, etc.

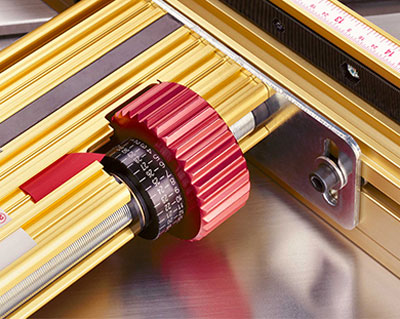

The TS-LS is already perfect in measuring increments of 1/32” or 1mm, but when you need to match existing project parts, the large micro-adjust knob turns the lead screw against the mating threads, allowing the fence to move between 1/32” steps with 0.001" (0.025mm) resolution.

Convenience and Capacity:

Two capacities available: The 32" (810mm) -capacity TS-LS is based on 72" main rails, the 52" (1320mm) -capacity on this page system uses 92” rails, and both systems use the same 32" -travel LS Positioner. The TS Rail Support Legs are standard equipment on the 52" System.


Quick-release knobs let the base assembly slide anywhere along the main rails to use the full 52” capacity or to access a router table, and the whole system lifts off the rails in seconds to clear off the saw's top surface or to reverse the system for ripping on the left side of the blade. Three pairs of stops on the rails maintain perfect alignment & calibration each time it’s moved.

Straightforward Installation:

Don't be put off by its appearance! Adjustable brackets make the INCRA TS-LS System a nuts-and-bolts installation on a huge variety of table saws, and the owner’s manual is excellent.


Choose Standard or XL:

Measure your saw’s top front to rear along the miter slot. The standard TS-LS (LS52-TS) covers saws measuring 28" or smaller front-to-rear. The “XL” version uses a longer fence and base support panel to fit most of the newer 10” & 12” cabinet saws with deeper tops measuring 33.5” or less.


The saw’s left-to-right width won’t matter for systems not equipped with router tables. You’ll keep your cast iron wings installed, and your existing extension tables can be reused.

Basic requirements for ALL table saws:

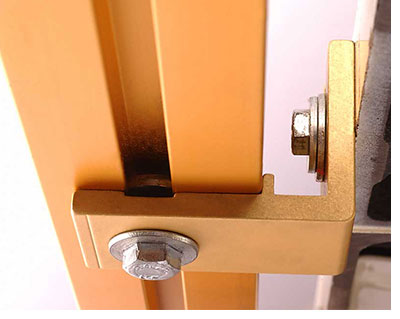

The saw’s top must have flat, vertical surfaces on both the front and rear for the (4) adjustable Incra rail mounting brackets to bolt against – two brackets at the front and two on the rear. The brackets are attached with a minimum 5/16”-18 or 8mm bolt. The bolt holes need to be centered between 3/4” and 1-3/8” down from the saw’s top surface, with enough clearance underneath the saw’s top for the washers, nuts and wrench (if the holes aren’t threaded).

The General Compatibility Chart lists the various categories of saws, and the TS-LS owner's manual is the best resource for seeing how the 4 rail mounting brackets attach and comparing that to your saw.

Made in USA.
