INCRA Solid Aluminum MagnaLOCK Router Table Plates
The INCRA Router Table Plate is the Single Most Important Part of any high-accuracy router table. Our super-rigid, 3/8"-thick aluminum MagnaLOCK Router Table Plates are conveniently pre-drilled for the most popular routers at no extra charge, and they're available without a router bolt pattern, if you prefer. These 9-1/4" x 11-3/4" plates are standard equipment with all five INCRA Router Tables and will work with a few other brands of tables.
|

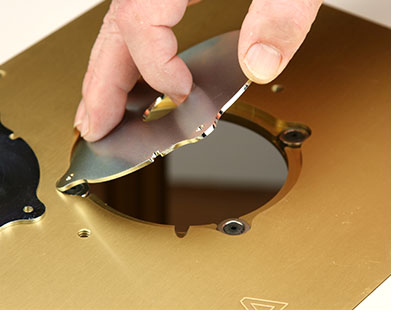

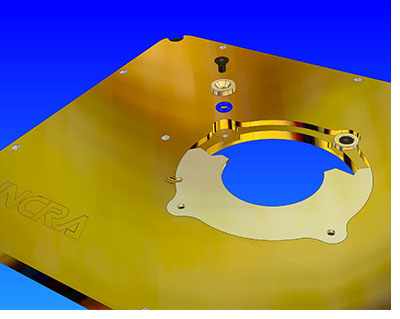

The included steel reducing rings are held securely by the MagnaLOCK system's high energy, rare-earth magnets. A simple leveling system at each magnet and access holes in the rings allow the rings to easily be brought absolutely, perfectly flush with the surrounding plate for the best performance during the most demanding, high-accuracy routing operations.
|
|
|
MagnaLOCK's instant, tool-free ring changes and perfectly flush fit for the rings make it simply the most convenient and best-performing ring system available. All of our mounting plates include three laser-cut steel rings with 1", 2-1/8" and 3-5/8" openings, and many more ring sizes are available as accessories.
|
|
|

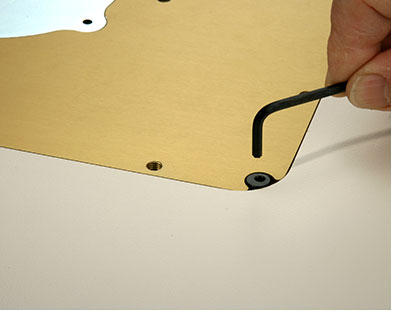

A simple quarter turn of the corner mounted, eccentric Cam-Lock screw securely holds the plate snugly in the router table's recess, eliminating any play between the table and plate for precise router work without the need for shims. The access holes for the in-table INCRA levelers are threaded, and a set of ten leveling set screws is included for using the plates in other brands of router tables.
|
See Extended Information for all models.
Notes:
1. All MagnaLOCK Plates include 3 MagnaLOCK Rings (1", 2-1/8" & 3-5/8").
2. Plate of your choice is included FREE with All INCRA Router Tables.
3. Leveling screws for use in non-INCRA router tables are included.
Popular Accessories & Upgrades:
|
A
greater variety of ring sizes gives you more support for small parts or when
using different diameter.
Available as a
set or individually with a dozen to choose from, including a ring to accept
guide bushings
.
|
|
If
you're building a router table, this template will save you tons of time
creating the opening for an INCRA Router Mounting Plate.
.
|
|
This
bearing-piloted Whiteside router bit has the ideal geometry for cutting router
table openings with the above template.
|
|
A new router table setup deserves a fresh router.Check out our full selection!
|
|
|
|
 |
|
 |
|
